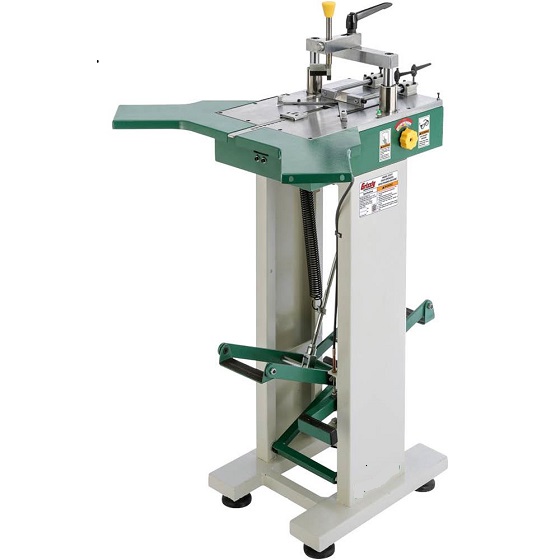

YK-PF-5M/Picture Framing Machine/Underpinner

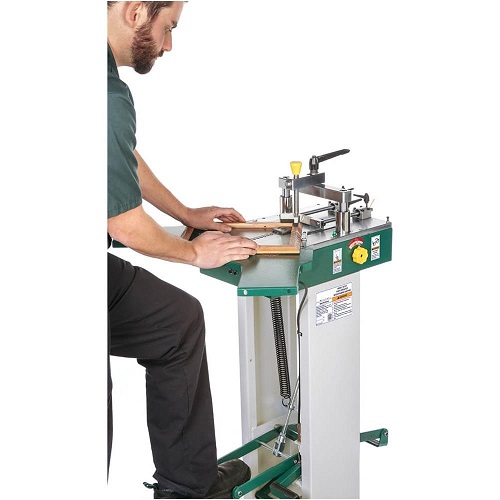

This Miter Framing Machine (a.k.a. Manual Underpinner or V-nailer) is perfect for anyone looking to quickly and accurately produce high-quality, professional picture frames - all with just the press of a pedal! The Model YK-PF-5M features dual foot pedals for front or rear operation, extension tables for supporting long picture-frame mouldings, vertical and horizontal stops for securely holding a wide variety of moulding profiles, and front and rear fence stops for precisely positioning V-nails. With its small footprint, this framing machine can easily fit into tight spaces, yet also offer big-time versatility. It can accommodate up to five standard "universal type" V-nail sizes, produce stacked nails, and make 4-, 6-, or 8-sided mouldings with the included fence inserts.
Specifications:
. V-nail channel capacity: 350 V-nails

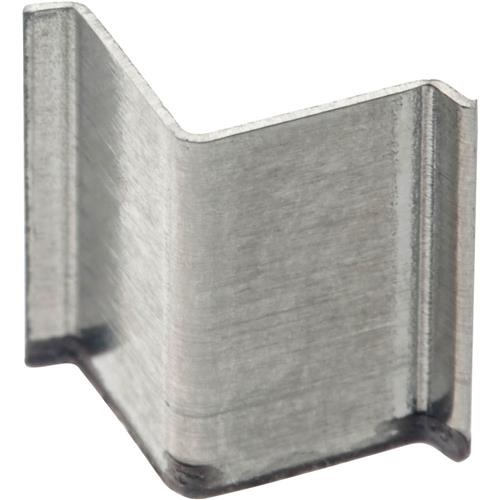

. V-nail sizes: 5, 7, 10, 12, 15mm
. Frame/moulding width range: 1/4"–3"
. Frame/moulding thickness range: 1/4"–3-1/2"
. Floor to table height: 37-1/2"
. Extension tables: 13-3/4"W x 13-3/4"D
. Overall size: 28-1/2"W x 48-1/2"H x 30"D
. Footprint: 15"W x 18"D
. Approximate shipping weight: 121 lbs.
Features:
. Dual foot pedals for front or rear operation

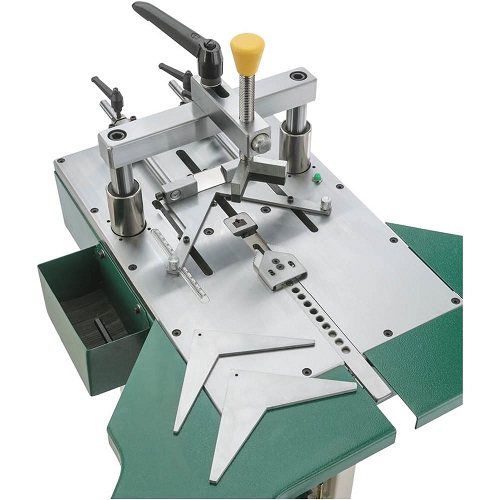

. 90°, 120°, and 135° fence inserts for 4-, 6-, and 8-sided frames
. Indicator light for completed V-nailing (9V battery required)
. Spring-assisted loading mechanism with nylon pull-cord for easy V-nail loading
. Rubber-tipped top clamp with simple push-button vertical adjustment
. Powder-coated steel base and extension tables; cast-iron main table
